Sample Overview

The samples/ directory ships a runnable end-to-end demo: a Hangfire host with the MCP server enabled, the MCP Inspector pre-wired, PostgreSQL storage, and Keycloak for OAuth — all orchestrated by .NET Aspire.

Projects

Project	Role
samples/AppHost	Aspire orchestrator. Wires PostgreSQL, Keycloak, the web host, MCP Inspector, and the docs.
samples/Web	ASP.NET host. Registers Hangfire, the dashboard, MCP, recurring jobs, OAuth, Swagger.
samples/HangfireJobs	Job interfaces covering the full range of supported parameter shapes.

Run it

aspire run   # uses aspire.config.json -> samples/AppHost

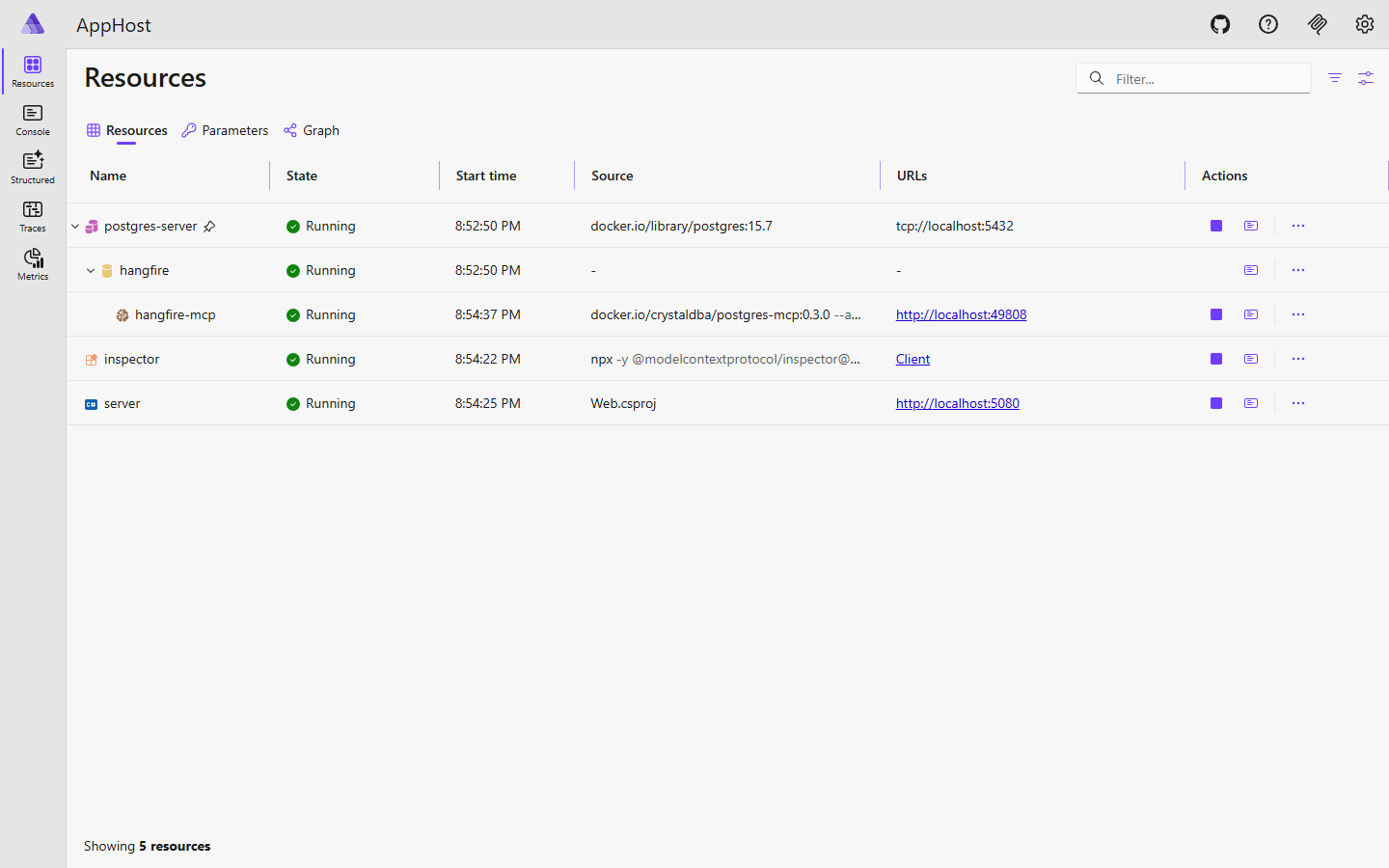

Once resources are healthy:

Resource	Role
server	ASP.NET host — runs Hangfire server and exposes /mcp
postgres-server / hangfire	Hangfire PostgreSQL storage
keycloak	OAuth 2.1 / OIDC provider with a pre-imported HangfireMcp realm
inspector	MCP Inspector pre-wired to /mcp
hangfire-mcp	Aspire-managed MCP proxy sidecar

AppHost wiring

// samples/AppHost/Program.cs
var web = builder
    .AddProject<Projects.Web>("server")
    .WithReference(postgresDatabase)
    .WaitFor(postgresDatabase)
    .WithReference(keycloak)
    .WithReference(realm)
    .WaitFor(keycloak)
    .WithMcpServer("/mcp");

builder
    .AddMcpInspector("inspector", new McpInspectorOptions { InspectorVersion = "0.21.2" })
    .WithEnvironment("DANGEROUSLY_OMIT_AUTH", "true")
    .WithMcpServer(web);

WithMcpServer("/mcp") advertises the endpoint to Aspire's MCP infrastructure so the inspector and other tooling discover it automatically.

Next

• Sample jobs — the job catalog the sample exposes.
• MCP Inspector walkthrough — list and call tools from the browser.
• Hangfire dashboard — verify jobs were enqueued and ran.
