Compact session rows

This example patches Kanban so that each session in the sidebar takes two lines instead of a tall card. It follows the steps in Patch a tool, with all the files in full.

Before and after

Before: one card for each session.

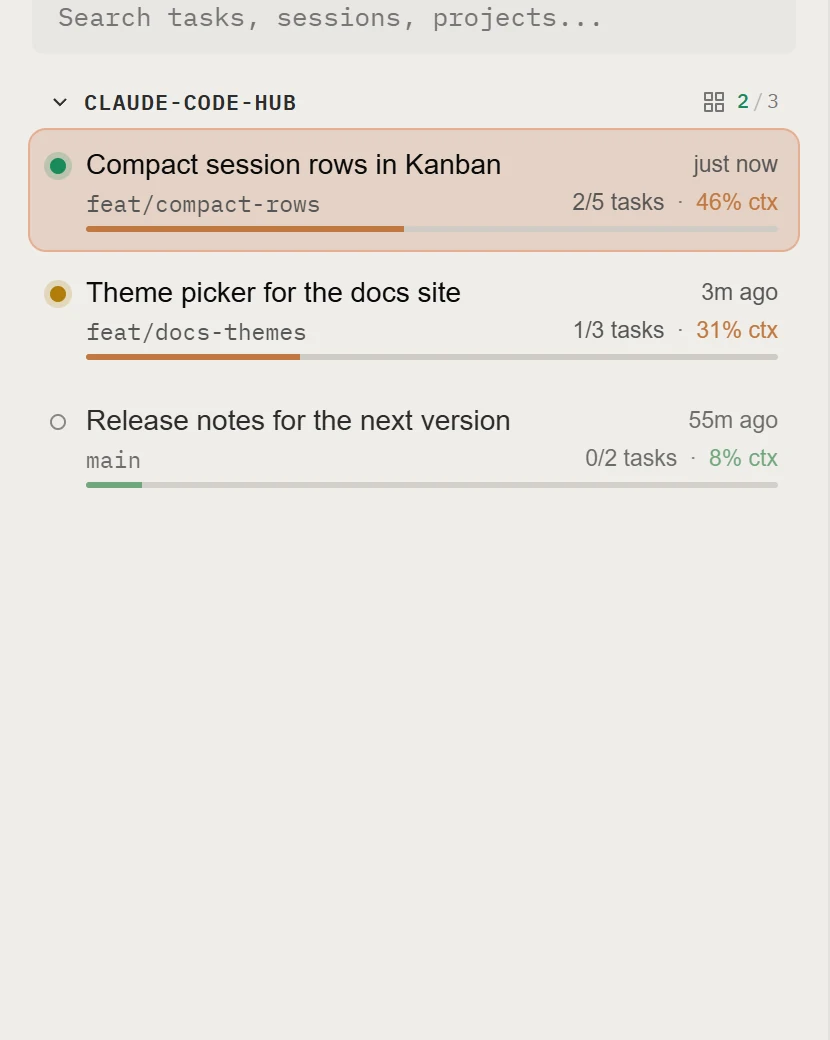

After: two lines and a context bar.

Each row shows:

• A status dot: green when the session is active, amber when it waits for you, an outline when it is idle.
• The session name and the time of the last change.
• The git branch, the task count and the context use. The context use has the same color as in the original card.
• A thin bar for the context use.

The wrapper

The finished wrapper has these files:

kanban-patched/
├── package.json
├── hub-app.json
└── patches/
    └── claude-code-kanban+4.31.1.patch

package.json

{
  "name": "kanban-patched",
  "private": true,
  "scripts": { "postinstall": "patch-package" },
  "dependencies": { "claude-code-kanban": "4.31.1" },
  "devDependencies": { "patch-package": "8.0.1" }
}

hub-app.json

{
  "manifest": 1,
  "id": "kanban-patched",
  "name": "Kanban (patched)",
  "icon": "columns",
  "run": { "entry": "node_modules/claude-code-kanban/server.js", "defaultPort": 4546 },
  "publishes": ["session.changed"],
  "provides": {
    "projects": { "path": "/api/projects" },
    "terminal": { "liveWork": "/api/terminals" }
  }
}

The manifest keeps what the original Kanban declares: it publishes session.changed, and it gives the project list and the terminal. Without provides, the hub has no terminal and no project list. Without publishes, the hub drops the session.changed messages, so an app that subscribes to the topic gets nothing.

Run npm install in the folder.

The change

public/app.js

In node_modules/claude-code-kanban/public/app.js, find renderSessionCard in renderSessions. Add two lines before the return, and replace the markup inside the <button>:

The new end of renderSessionCard (18 lines)

    const ctx = showCtx ? getCtx(session.contextStatus) : null;
    const ctxColor = ctx ? getContextColor(ctx.usedTokens, ctx.modelName) : '';
    return `
          <button onclick="openSession('${sid}')" draggable="true" data-session-id="${escapeHtml(session.id)}" class="session-item ${isActive ? 'active' : ''} ${session.hasWaitingForUser ? 'permission-pending' : ''} ${tempClass} ${showCtx ? 'has-context' : ''}" title="${escapeHtml(tooltip)}">
            <span class="srow-dot ${session.hasWaitingForUser ? 'waiting' : isLive || session.hasRunningAgents || session.hasRecentLog ? 'active' : 'idle'}"></span>
            <div class="srow-line">
              <span class="session-pin-btn${pinClass}" onclick="event.stopPropagation();toggleSessionPin('${sid}')" title="${pinTitle} session">${pinState === 'sticky' ? SESSION_STAR_SVG : SESSION_PIN_SVG}</span>
              <span class="session-name">${escapeHtml(sessionName)}</span>
              <span class="srow-when">${formatDate(session.modifiedAt)}</span>
            </div>
            <div class="srow-line srow-meta">
              <span class="srow-branch">${gitBranch || '—'}</span>
              <span class="srow-tasks">${total ? `${session.completed}/${total} tasks` : 'no tasks'}</span>
              ${ctx ? `<span class="srow-ctx" style="color:${ctxColor}">${Math.round(ctx.pct)}% ctx</span>` : ''}
            </div>
            ${ctx ? `<div class="srow-bar"><i style="width: ${ctx.pct}%; background: ${ctxColor}"></i></div>` : ''}
          </button>
        `;

The new markup uses Kanban’s own functions: getCtx reads the context use, getContextColor gives its color, and formatDate writes the time. The button and its attributes stay the same, so a click, drag and drop and the keyboard still work.

public/style.css

In node_modules/claude-code-kanban/public/style.css, add these rules before .context-bar:

The new rules (94 lines)

.session-item:has(> .srow-dot) {
  display: grid;
  grid-template-columns: 8px minmax(0, 1fr);
  column-gap: 10px;
  row-gap: 4px;
  padding: 9px 10px;
  margin-bottom: 2px;
  border-color: transparent;
  background: transparent;
}
.session-item:has(> .srow-dot):hover {
  background: var(--bg-hover);
}
.session-item.active:has(> .srow-dot) {
  background: var(--accent-dim);
  border-color: color-mix(in srgb, var(--accent) 35%, transparent);
}
.srow-dot {
  width: 8px;
  height: 8px;
  margin-top: 5px;
  border-radius: 50%;
  grid-row: 1 / 4;
  border: 1.5px solid var(--text-muted);
}
.srow-dot.active {
  border: none;
  background: var(--success);
  box-shadow: 0 0 0 3px color-mix(in srgb, var(--success) 20%, transparent);
}
.srow-dot.waiting {
  border: none;
  background: var(--warning);
  box-shadow: 0 0 0 3px color-mix(in srgb, var(--warning) 20%, transparent);
}
.srow-line {
  display: flex;
  align-items: center;
  gap: 6px;
  min-width: 0;
}
.srow-line .session-name {
  flex: 1;
  min-width: 0;
  overflow: hidden;
  text-overflow: ellipsis;
  white-space: nowrap;
  font-weight: 500;
}
.srow-line .session-pin-btn {
  position: static;
  order: 0;
}
.srow-line .session-pin-btn:not(.pinned):not(.sticky) {
  display: none;
}
.srow-when,
.srow-meta {
  font-size: 11.5px;
  color: var(--text-tertiary);
  font-variant-numeric: tabular-nums;
}
.srow-when {
  flex: none;
}
.srow-branch {
  flex: 1;
  min-width: 0;
  overflow: hidden;
  text-overflow: ellipsis;
  white-space: nowrap;
  font-family: var(--font-mono);
}
.srow-tasks,
.srow-ctx {
  flex: none;
}
.srow-ctx::before {
  content: "·";
  margin-right: 6px;
  color: var(--text-muted);
}
.srow-bar {
  height: 3px;
  border-radius: 2px;
  background: var(--border);
  overflow: hidden;
}
.srow-bar i {
  display: block;
  height: 100%;
  background: var(--success);
}

The rules use Kanban’s theme variables, such as --accent, --success and --text-tertiary. The rows follow each hub theme, in light and dark mode.

Save the patch

npx patch-package claude-code-kanban

This writes patches/claude-code-kanban+4.31.1.patch. To check it, delete node_modules and run npm install. The output shows claude-code-kanban@4.31.1 ✔.

Run it in the hub

Add the wrapper to config.json, before the other tools, and turn the original Kanban off:

{
  "apps": [
    { "id": "kanban-patched", "path": "C:/dev/kanban-patched" },
    { "id": "kanban", "enabled": false }
  ]
}

Restart the hub. The startup log shows where the tool runs from:

kanban-patched runs from C:\dev\kanban-patched

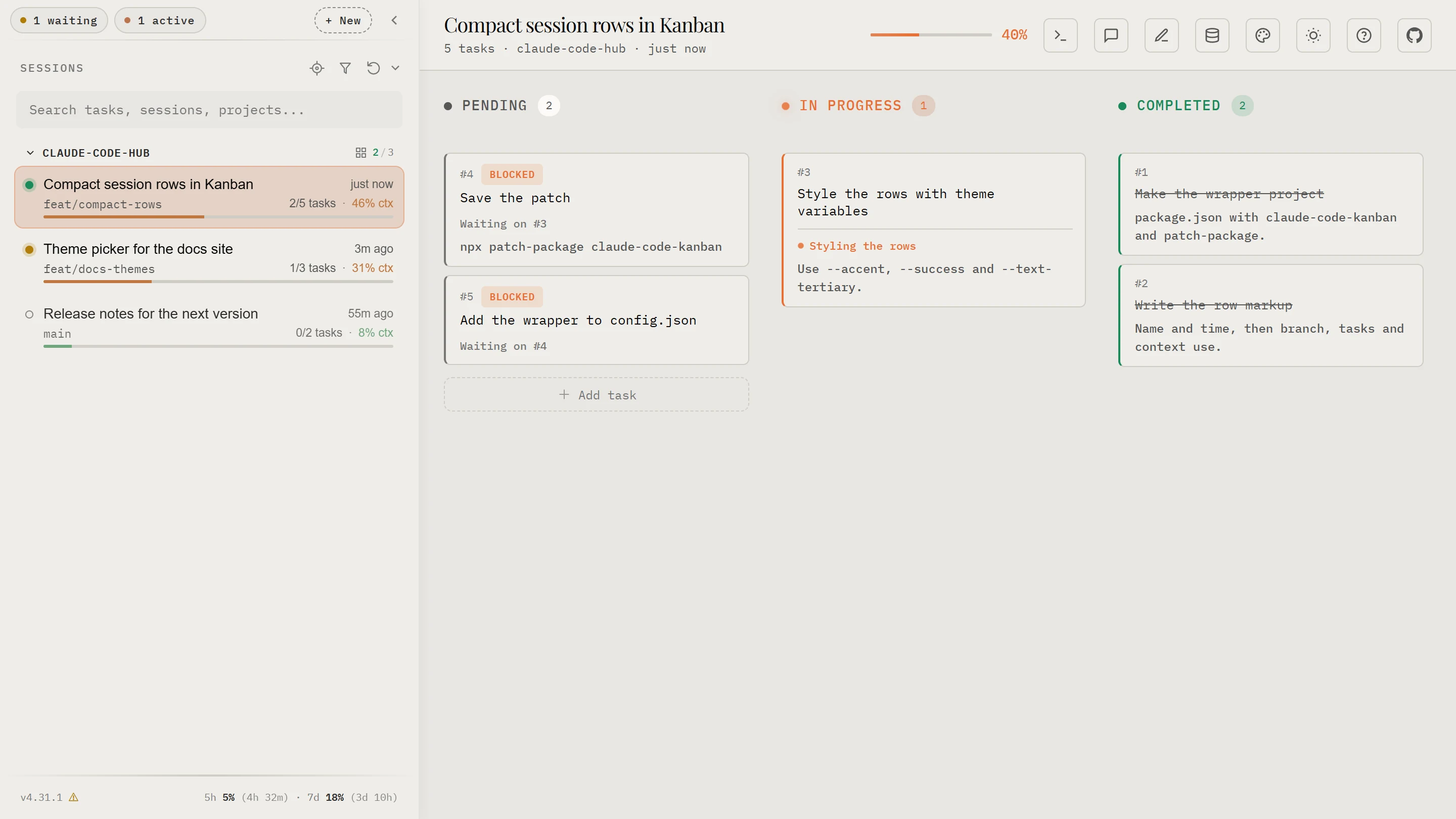

The patched Kanban is the first tab (Alt+1). It has the embedded terminal and the project list, and its links to Cost, Marketplace and Memory Diagnoser work as before.

What the patch removes

The new row has no place for the small badges of the original card: team, plan, bookmarks, linked documents, scratchpad, loop, workflow and terminal. Add the ones you use to the second line, or keep the patch small and accept the loss. If you want to change more of the card, think about a fork.
